Ultimate Guide to Finishing 3D Printed Parts

Time to read: 13 min

The purpose of this article is to detail the different finishing methods for FDM and PolyJet 3D printed parts and the techniques/tips that can elevate the look and feel of your prototypes.

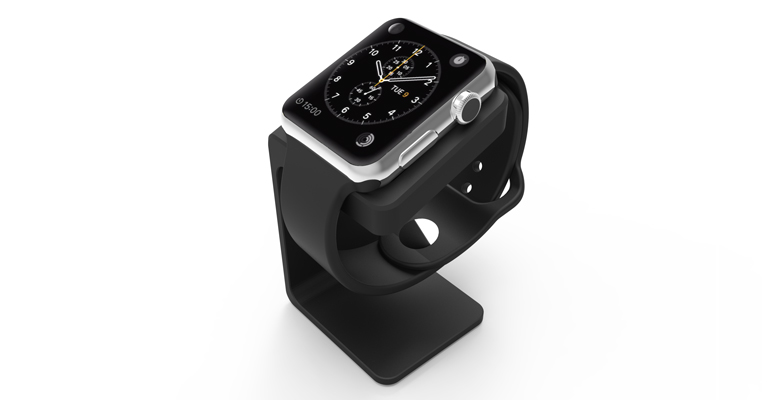

A simple Apple Watch stand design will be utilized as a case study. This stand is a model with pockets and internal and external features that needs to be surface finished to a standard that complements the shiny exterior of an Apple Watch put on it.

Here’s a quick overview of the main points this article covers:

• PLA: If you’re working with a tight budget then PLA is going to be your best material choice; the results aren’t as polished but the price is cheapest.
• ABS: If your budget is moderate then go with ABS. It’s not as cheap as PLA but still at a low price point and the material is more reliable than PLA.
• VeroBlack or VeroWhite: For the highest quality parts go with VeroBlack/VeroWhite. This will give you the best dimensional accuracy and best overall polished look.

Overview of Post-Processing

The 3d printing post-processing needed for the watch stand parts involves a combination of repairing and preparing the print for post-processing, sanding, and painting.

The finished sample 3D printed parts with all three materials should be smooth, matte black surfaces. Inherent to the 3D printing process, with every print are unique challenges and considerations to arrive at the best finish possible. Although there are ways to mitigate the challenges, experience in 3D printing goes a long way.

The print settings process for each material is detailed separately and a summation of the results may be found in the conclusion of this article.

ABS (Printed on a Dimension Elite)

The Dimension Elite prints are smooth, clean, and ready to sand out of the NaOH bath.

There are, however, clear stepping lines between the printed layers. If we don’t remove these stepping lines, they’ll show up in the final paint coat which will ruin our smooth finish. Thankfully, removing these will be easy thanks to ABS’s high melting point and easy sandability.

Materials Needed

The materials we’ll be using:

• Sandpaper (grits 100 to 600)
• Medium, fine, and extra-fine sanding sponges
• XTC-3D brush-on coating (As an alternative, Bondo putty is a common solution to fill holes in parts. We chose XTC-3D for its viscosity, sandability, and ability to penetrate small perforations, which makes it desirable over Bondo putty)
• Razor blade
• Foam brush, mixing cups and popsicle sticks
• Sandable Krylon Primer
• Montana Acrylic Primer in Shock Black
• Matte Acrylic Varnish

Sanding

Sanding the ABS print is simple and straightforward. First start with 100 – 200 grit sandpaper to remove stepping lines and then gradually increase up to 600 grit to achieve a smooth finish without sanding lines.

Pro Tip: Sand in small circular movements evenly across the surface of the part. Avoid sanding in one direction only, especially in the direction of the stepping lines to prevent striations or “trenches” in the print.

Beware that ABS is very easy to sand, so be careful not to overdo it. Removing as little as .010” can be enough to completely remove any stepping layers and oversanding can compromise critical dimensions.

After sanding the parts, some holes are revealed on our part left by an incomplete layer around the letters DIM. These holes can perforate through the finished paint coat to create ugly sinkholes, so we need to find a solution.

As you can see in the Catalyst tray to the right, there are large holes between the DIM and the edge of the part. Moving the DIM up in our Solidworks model would solve this, but for now we’ll have to find a way to fill these holes with a sandable filler.

Repairing the Incomplete Layer

We’re going to use a thin, sandable epoxy called XTC-3D to fill the tiny holes and crevices in our print. XTC-3D is cheap (a 24 oz bottle costs about $25), quick, thin, and effective. Note that a small amount goes a long way (within the 10 minute pot life).

Pro Tip: Be sure to maintain a weight ratio of 100 Part A to 42 Part B. Mix thoroughly for one minute and coat your part within the 10 minute pot life. For more details, check Smooth-On’s technical bulletin here, and a great instructional example here.

Before applying the XTC-3D, wash the part with soap and dry with compressed air to ensure your part is thoroughly clean and free of any oils or sanding dust. Also make sure to wear gloves so as not to get any hand oils or sweat on your part.

Fill in holes or gaps in your print with a very thin (1/64”) coat; a thin layer of XTC-3D will level itself out. We used a razor blade to scrape excess XTC-3D into the unwanted holes and gaps, making sure to avoid any areas we didn’t want filled (like the letters DIM).

Allow the XTC-3D sufficient time to become tack-free dry (approximately 2 hours). Now we’re ready to continue sanding away at the excess XTC-3D layer with 300 to 600 grit to reveal the repaired surface.

Then, after another thorough wash, we’re ready to begin preparing our repaired surfaces for painting.

Priming and Painting

Painting 3D printed parts is a vast world of acrylics, enamels, sprays, and airbrushes.

In this example, we’ll be using Montana spray can paints to follow a relatively straight forward process: prime, dry, paint, dry, varnish, dry.

Standard spray painting principles apply:

1. First make sure your surface is oil-free, dust-free and hole-free
2. Shake your cans for at least two minutes prior to painting
3. Ensure your cap is clean to prevent drips
4. Be aware of how the paint is accumulating on the part and look for any pooling or dripping
5. Paint in many light coats rather than fewer heavy coats; this is especially important for 3D printed parts with internal and obscured geometries
6. Paint in controlled, well-ventilated and well-lit areas

The Dimension prints started with very obvious stepping between layers. If you’ve sanded properly up until now to create as smooth a surface as possible, these layers shouldn’t show up in your final paint finish.

The Final Result

The finished ABS part is matte black and smooth to the touch with very little evidence of layering in most surfaces. A few important results to note here:

• Sharp internal pockets are tough to sand. After about 30 minutes of sanding, we still had a hard time removing all the layering and the stepping shows up even after priming, painting, and varnishing the print.
• Because we had to remove more surfaces from the sanding, there is some sacrifice in regards to the final geometry of the part.
• Filling the incomplete layer with a thin coat of XTC-3D worked very well; those holes are invisible in the final paint layer.

VeroBlack (Printed on an Objet30)

Thanks to .0011” resolution, the Objet30 prints have some stepping between layers, but nowhere near as obvious as in our FDM prints.

The Objet30 prints come out of the printer with a thick layer of support structure material so before we can begin finishing our VeroBlack part, we’ll need to remove this support structure and the residue it leaves behind.

VeroBlack 3D Printed Part Materials Needed

The materials needed for post-3D printing finishing:

1. Sandpaper (grits 100 to 600)
2. Medium, fine, and Extra fine Sanding Sponges
3. Sandable Krylon Primer
4. Montana Acrylic Primer in Shock Black
5. Matte Acrylic Varnish

VeroBlack 3D Printed Part Sanding

Start with 100 grit sandpaper to wet sand the residue and gradually move to wet sand with 300 grit sandpaper; the residue will fall off in small soft white chunks. This is the hardest part of the VeroBlack finishing process and it took us about 30 to 40 minutes to remove all the residual layer.

After removing the residual layer by wet sanding utilizing 300 grit sandpaper, the surface of the part will begin to feel smooth. If you rub the part with your fingernail, you’ll feel it’s harder and more plastic-like beneath the gummy residual coat. Continue wet sanding through to 600 fine grit sandpaper until the part is fully smooth.

Pro Tip: Water breaks up the residue, so wet sanding is a highly effective method to get a smooth, residue-free, paintable, and homogenous surface.

Thoroughly clean your part with soap and water before you move on to the next step to remove any additional residue. Again, we recommend using compressed air to dry the part and clear any accumulated dust.

Beware that VeroBlack is like ABS: very easy to sand, so be careful not to overdo it. Once you break through the residual layer, the actual VeroBlack will sand very easily. Removing as little as .005” can be enough to completely remove any stepping layers. Be careful as oversanding can compromise critical dimensions.

VeroBlack 3D Printed Part Priming and Painting

Next, we’re going to paint the VeroBlack part just as we did the ABS part: using Montana spray can paint with the following process: prime, dry, paint, dry, varnish, dry.

Standard spray-painting principles apply:

1. First make sure you have a good surface quality which is oil-free, dust-free and hole-free
2. Shake each paint can for at least two minutes prior to painting
3. Ensure your cap is clean to prevent drips
4. Be aware of how the paint is accumulating on the part and look for any pooling or dripping
5. Paint in many light coats rather than fewer heavy coats; this is especially important for 3D printed parts with internal and obscured geometries
6. Only paint in controlled, well-ventilated, and well-lit areas

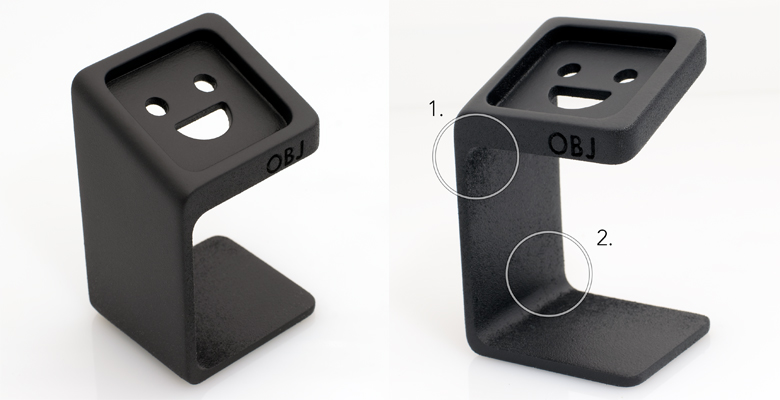

VeroBlack 3D Printed Part Final Results

The finished VeroBlack part is matte black and smooth to the touch. A couple points to note here:

• Some of the internal corners were not sanded enough to remove the residue, so you can see how the paint powdered up in these areas. This will likely result in peeling paint over time.
• Although very little stepping is visible on the part, you can see slight evidence of it here. This part could have probably used 30 more minutes of thorough sanding.

PLA (Printed on a 5th gen. Replicator)

Now for the dreaded PLA, a notoriously difficult material to finish. But with some tricks and patience, it too can join ABS and VeroBlack in the ranks of matte black glory!

This Replicator print came off the plate with severe striations: see the parallel grooves in the layers of the part above. This could be a result of machine quality, but for now we’ll just have to find a way to maneuver these striations to a smooth part.

Sanding PLA is difficult, in part because of how soft and gummy it becomes if you try to sand too aggressively or quickly, so we’ll explore options on how to smooth 3d prints with minimal effort and abrasion.

PLA 3D Printed Part Sanding

If you choose to sand the PLA directly, the process is straightforward. Note: PLA acetone smoothing is not advisable. PLA smoothing is not as forgiving as ABS when it comes to sanding and abrasion, so you will likely spend more time removing the stepping between layers, especially with the severe striations in a print like ours.

Begin with a low (100 – 200) grit sandpaper, sanding away at the bumpy striations and any raft or support material (aluminum foil) left behind. Particularly in the case of MakerBot support, it’s easiest to remove them with a flush cutter or pair of pliers and brush them with a rotary multi-tool first before sanding away at them.

Depending on the size and geometry of your part, you’ll likely be stuck in the 100 – 300 grit sandpaper range for a while to smooth out striations and pesky support structure remnants.

Once layering and striations are less prevalent, move through finer grits (400 – 600) sandpaper to achieve a shiny surface ready for priming and painting.

Pro Tip: Patience is key when sanding PLA. Turn on a movie or your favorite show, but don’t zone out! Sand in small circles evenly across the surface of the part. If you’re using a sanding multi tool on PLA, be careful not to overheat/melt your 3D printed part.

An alternative method to sanding PLA prints directly is smoothing the PLA print with the XTC-3D first and then sand on top of the coating.

PLA 3D Printed Part Finishing

We’re going to use XTC-3D to create a smooth, sandable, paintable layer of epoxy clear coat glossy finish around our PLA print.

Before applying XTC-3D, ensure that your part is thoroughly clean, free of any oils and sanding dust (sensing a pattern yet?). Wash the part with soap and dry with compressed air to clear any dust. Again make sure to wear gloves to protect both your part and your hands.

Brush on the XTC-3D in a thin (1/64”) coat; as long as the coat is thin enough, it will level itself out. Between coats, leave 1.5 hours for the XTC-3D to dry.

It may be difficult to coat an entire part at once, so don’t be afraid to do it in sections, making sure to keep overlapping to a minimum between sections. Wait 90 minutes between first and second coats and after you’ve finished wait 2 hours to allow the shiny surface to become tack-free.

With striations as severe as ours, it will take multiple coats to get a smooth uniform surface, so patience is key. Remember that multiple thin glossy finish coats will level better than thick coats.

Pro Tip: Internal pockets are susceptible to pooling so be careful to suck up or remove any pooling that occurs before the XTC-3D begins to dry (that’s what we’re doing in the left picture above).

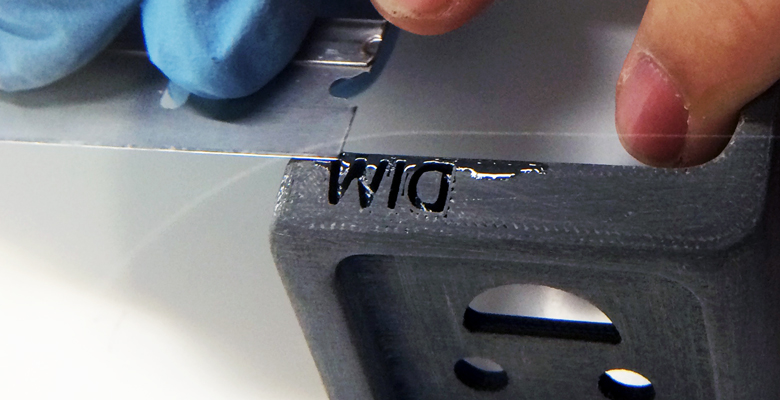

Beware that XTC-3D may compromise critical dimensions, but applying thin glossy finish coats will allow you to minimize the additional material.

After the XTC-3D layer has hardened (two hours after application of the last coat) it should be ready for sanding. Follow basic sanding guidelines, starting with 300 grit sandpaper (thanks to the smoothness of the XTC-3D) and sanding in small circular movements to even the surface. Any wavy patterns may require a coarser grit sandpaper to remove.

The sandpaper will scratch up the XTC-3D coat; focus on getting a level surface, moving through to 600 grit sandpaper.

After you’ve finished sanding 3D prints, make sure to thoroughly clean your part with soap and water and then dry using compressed air before moving on to the next step.‍

PLA 3D Printed Part Priming and Painting

Painting PLA parts follows the same process as the ABS and VeroBlack parts: prime, dry, paint, dry, varnish, dry.

Standard spray painting principles apply:

1. Make sure your surface is oil-free, dust-free and hole-free
2. Shake your cans for at least two minutes prior to painting
3. Ensure your cap is clean to prevent drips
4. Be aware of how the paint is accumulating on the part and look for any pooling or dripping
5. Paint in many light coats rather than fewer heavy coats; this is especially important for 3D printed parts with internal and obscured geometries
6. Paint in controlled, well-ventilated and well-lit areas

PLA 3D Printed Part Final Results

The XTC-3D coated PLA part is matte, black, and has a smooth surface to the touch with a few problems:

• Although the XTC-3D has worked well to smooth the part and make sanding quicker and easier, it has left pooling in the internal pocket that has shown through the paint finish.
• Striations are still visible on the part. 30 more minutes of sanding 3D prints could have prevented these from showing through the final paint finish.

Results and Closing Thoughts

After finishing all three parts to a smooth, matte black finish, let’s take a look at the differences in process, time, materials and finish.

Differences in Process

ABS (Dimension Elite)

• Sand from 100 to 600 grit
• Repair holes with XTC-3D (may not apply to your part)
• Sand away XTC-3D with 300 to 600 grit
• Prime, Paint, Varnish

VeroBlack (Objet30)

• Sand from 100 to 600 grit
• Prime, Paint, Varnish

PLA (Replicator 5th gen.)

• Coat in 1 to 3 layers of XTC-3D (depending on how bad the striations on your print are)
• Sand away XTC-3D with 100 to 600 grit
• Prime, Paint, Varnish

Differences in Time

The part that took the longest to finish was PLA due to the XTC-3D coating time. Even without XTC-3D, however, PLA typically takes longer to sand than ABS or VeroBlack.

In our example, the VeroBlack was ultimately faster to finish since we repaired our ABS print with XTC-3D and stepping between layers was not as significant in the VeroBlack print.

All things considered, VeroBlack was the quickest to get to a smooth, matte black finish.

Pro Tip: If you’re in a rush to get from printer to photoshoot, pick the Dimension Elite or Objet30. Especially in models with overhangs and significant amounts of support material, the Dimension Elite and Objet30 both have support material that is quickly removable via dissolution, whereas the PLA support on a Replicator can significantly increase the time required to get to a smooth surface part.

Differences in Cost and Materials

It’s important to consider the amount of time it will take to finish your model as well as the overall look and dimension when considering the price.

PLA is the cheapest out of the three, at $20 per part, followed by ABS at $55, and VeroBlack at $110. In our opinion, VeroBlack is the best bang for your buck since it’s the shortest to surface finish and will give you the most accurate model.

Comparison of the Final Results

At first glance, all three models may look very similar, but there are a few key differences in the final finish.

Both the ABS and the PLA finished prints have evidence of stepping between layers that is visible in the final paint coat. The VeroBlack print requires much less effort to remove these steps, which ultimately are not as obvious in the final paint coat.

Although the ABS and the VeroBlack finished prints have very similar surface finishes, more material (approximately .020”) was lost in the sanding process for the ABS to remove stepping between layers. In contrast, the VeroBlack print required less sanding, so the final object dimensions are closer to the original design intent.

Individual Summary of Each Part

VeroBlack: High layer resolution (.0011”) means little sanding is required to get a smooth, paintable part. Critical dimensions don’t need to be compromised to get a smooth surface quality part and no repairs are needed for fine detailed features.

ABS: Parts are easy to sand, but small fine detailed features may require repairing and careful sanding to remove stepping between layers. Once this stepping is removed, painting is straightforward.

PLA: The cheapest option, but also has the potential to be the most difficult to finish, depending on support structures and quality of the print. May require significant sanding and repairing via XTC-3D or Bondo filler.

Browse our website to learn more about our capabilities, such as 3D Printing and CNC Machining.

Quick Facts:

1. Finishing a 3D printed part often involves a combination of the following processes: smoother application, sanding, polishing, cleaning and painting. The process is unique to the material type.
2. A smooth finish with 3D printing is achievable but, post-processing will greatly improve the smoothness of parts.
3. Epoxy resins are an excellent choice for sealing PLA printed parts.
4. Acetone smoothing is not recommended for PLA prints.
5. In general, IPA or rubbing alcohol will not dissolve PLA but there are some varieties that may be IPA soluble. Consult your filament material datasheet or technical datasheet for more information.
6. PLA may be smoothed without sanding by dipping it or spraying it with a coating.
7. ABS is tougher and lighter than PLA which is stronger and stiffer. Both have their ideal applications, but PLA is typically considered a hobby material whereas ABS is ideal for prototyping.
